SPECIFICATIONS
Item numberLR23480
Item descriptionLED/MINI4/FIRE/5CCT/RD/WT
Size4"
Shape 4" FIRE RATED MINI PANEL

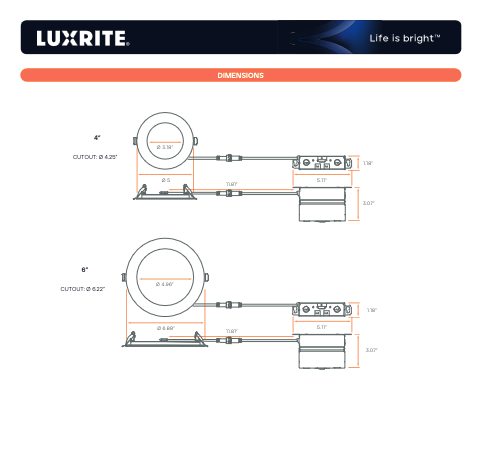

Dimensions
Length Ø5"
Height 1.25"
Cutout Ø4.25"
Finish WHITE
PHOTOMETRIC
Color (Temp) CCT SELECTABLE
Color (CCT) 2700K/3000K/3500K/4000K/5000K
Lumen 800
Beam Angle 120º
CRI 90
ELECTRICAL
Power (Wattage) 12
Input Volts 120V
Rated Lifetime 50000
Yearly Cost $1.44
Dimmable TRIAC
Power Factor 0.9
Frequency 60Hz
Lumen Efficacy 67
Operating Temp:
Min -4º
Max 104º
PACKAGING
UPC Barcode 793888412743
Master BarCode 10793888412740
Master Carton Dimensions:
Length 16.53"
Width 11.22"
Height 9.25"
Weight 7.58kg
Case Size 18
