SPECIFICATIONS

  • Item numberLR25707
  • Item description

    LED2X4DPNL/3WO/3CCT/CL

  • Size2x4
  • Shape 2X4
  • Dimensions
    • Length 23.74"
    • Width 47.72"
    • Height 1.74"
  • Finish WHITE

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3500K/4000K/5000K
  • Lumen 3300/4400/5500
  • Beam Angle 110°
  • CRI 80

ELECTRICAL

  • Power (Wattage) 30/40/50
  • Input Volts 110-277V
  • Rated Lifetime 50000
  • Yearly Cost $6.02
  • Dimmable 1-10V
  • Power Factor 0.9
  • Frequency 50/60Hz
  • Lumen Efficacy 110
  • Operating Temp:
    • Min -4°
    • Max 104°

PACKAGING

  • UPC Barcode 793888410541
  • Master BarCode 10793888410548
  • Master Carton Dimensions:
    • Length 49.60"
    • Width 25.59"
    • Height 9.64"
  • Case Size 4

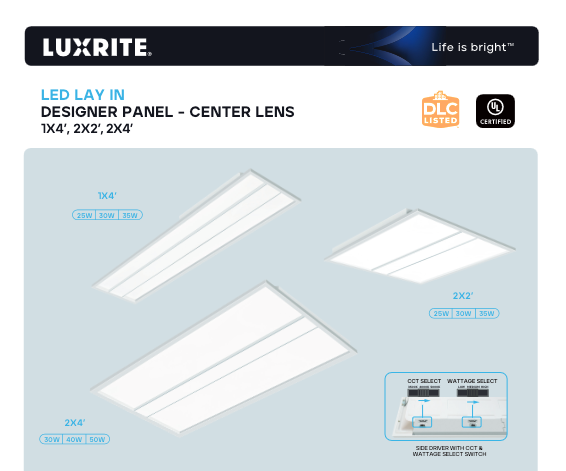

LR25707 2X4 DESIGNER PANEL - 3CCT & WATTAGE SELECTABLE
