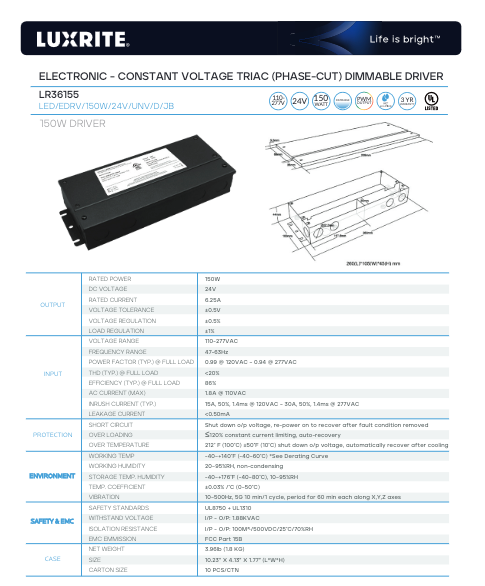

SPECIFICATIONS
Item numberLR36155
Item description
LED/EDRV/150W/24/UNV/D/JB
OUTPUT
DC voltage 24V
Rated Current 6.25A
Rated Power 150W
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 100-277VAC
Frequency Range 47-63Hz
Power Factor（Typ.）@ full load 0.98 @ 120VAC - 0.95 @ 277VAC
THD（Typ.）@ full load <20%
Efficiency（Typ.）@ full load 0.86
AC Current（Max.） 1.8A @ 100VAC
Inrush Current （Typ.） 15A, 50%, 1.4ms @120VAC - 30A, 50%, 1.4ms @ 277VAC
Leakage current <0.50mA
INPUT
Voltage Range 100-277VAC
Frequency Range 47-63Hz
Power Factor（Typ.）@ full load 0.98 @ 120VAC - 0.95 @ 277VAC
THD（Typ.）@ full load <20%
Efficiency（Typ.）@ full load 0.86
AC Current（Max.） 1.8A @ 100VAC
Inrush Current （Typ.） 15A, 50%, 1.4ms @120VAC - 30A, 50%, 1.4ms @ 277VAC
Leakage current <0.50mA
Environment
Working TEMP. - 40~ +140°F
Working Humidity 20~90%RH
Storage TEMP. Humidity - 40~ +176°F
TEMP. coefficient ±0.03% /ºC (0~50ºC)
Vibration 10~500Hz
Safety & EMC
Safety standards UL8750 UL1310
Withstand voltage 1.88KVAC
Isolation resistance 100M/500VDC/25ºC/70%RH
EMC EMISSION FCC Part 15B
MISC
POWER FACTOR 0.98 @ 120VAC - 0.95 @ 277VAC
DIMMABLE TRIAC
DIMMING RANGE 10-100%
DIMMING TYPE Forward phase, Reverse phase, Triac, MLV, ELV
LOAD 10-100%
